Extension: MII EX Imaging Modality MR

Official URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-bildgebung/StructureDefinition/mii-ex-bildgebung-modalitaet-mr				Version: 2027.0.0-ballot.1
Active as of 2026-09-15				Computable Name: MII_EX_Bildgebung_Modalitaet_MR

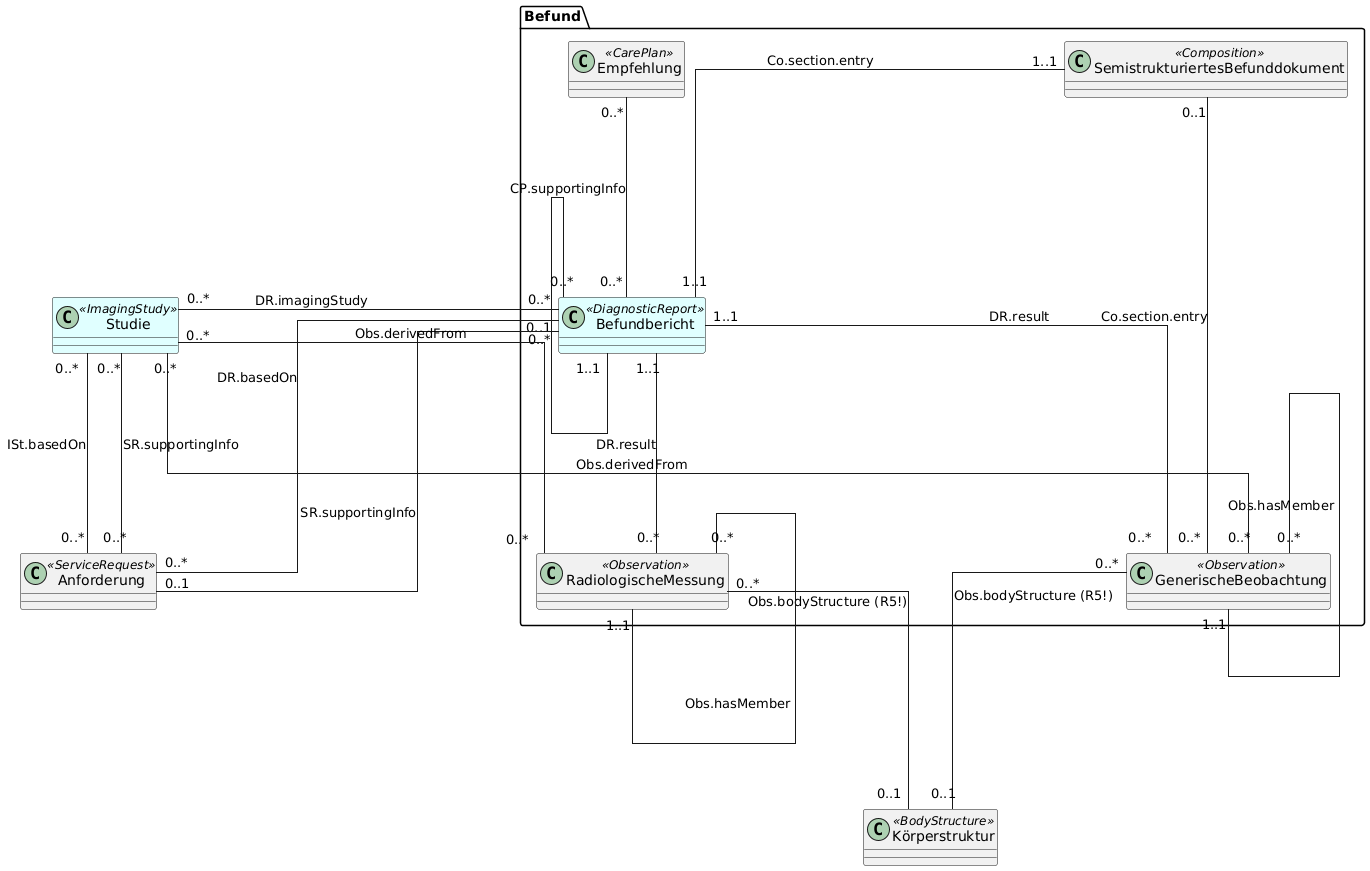

The extension allows to extend the resources and feasibility analysis to MR data.

Context of Use

This extension may be used on the following element(s)

Element ID: ImagingStudy.series

The MR (magnetic resonance imaging) extension enables the capture of relevant DICOM tags in order to draw conclusions about how the images were acquired. A characteristic of magnetic resonance imaging is the use of a strong magnetic field, which makes it possible to produce detailed images of tissue structures. This information about the magnetic field strength, the various time intervals and the scanning sequences is available in the corresponding DICOM tags.

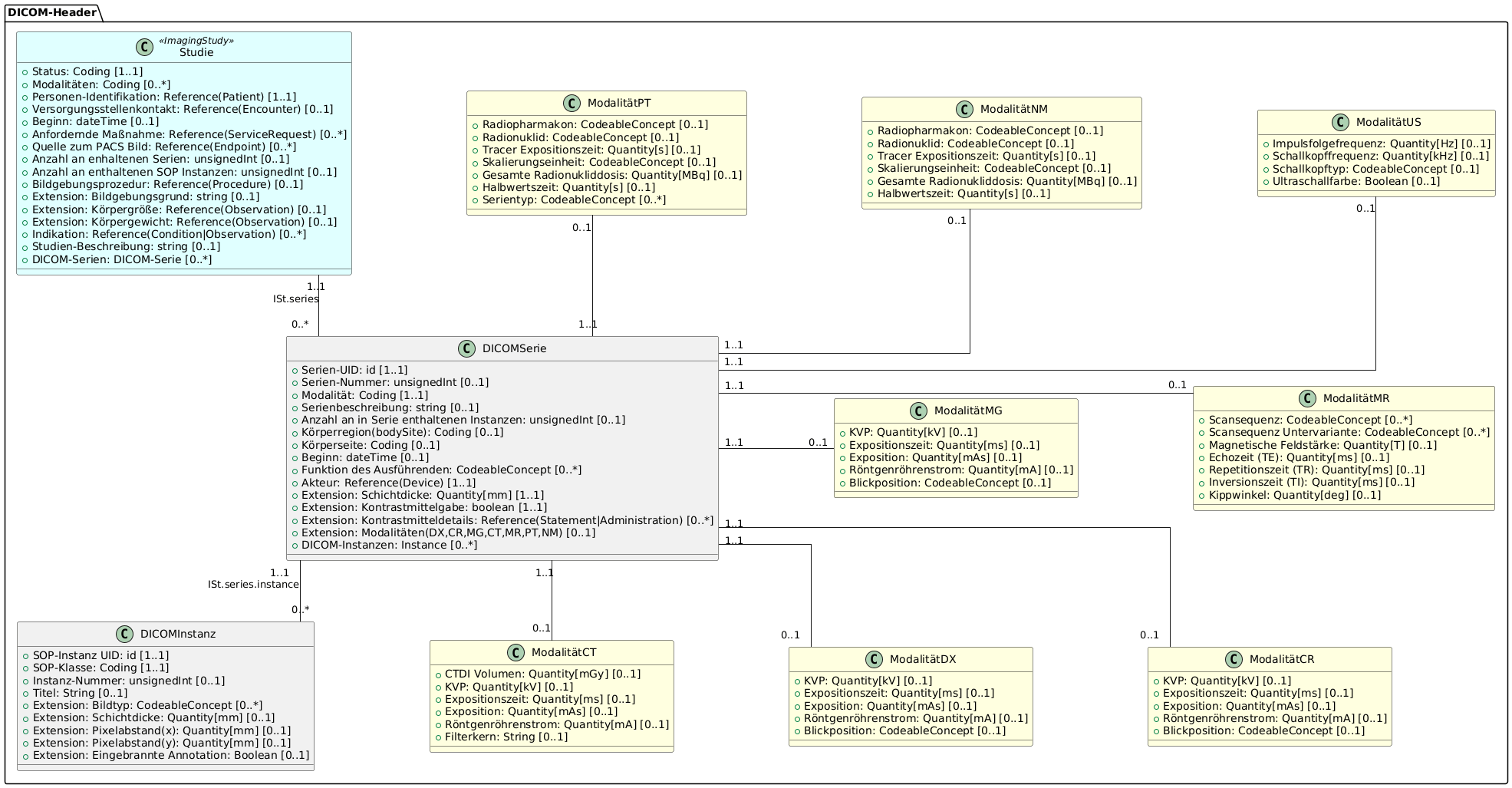

Relevant DICOM tags:

Magnetic field strength [(0018, 0087) magneticFieldStrength] in tesla [T]
Scanning sequence [(0018, 0020) scanningSequence]
Scanning sequence variant [(0018, 0021) scanningSequenceVariant]
Echo time (TE) [(0018,0081) Echo Time] in milliseconds [ms]
Repetition time (TR) [(0018,0080) Repetition Time] in milliseconds [ms]
Inversion time (TI) [(0018,0082) Inversion Time] in milliseconds [ms]
Flip angle [(0018,1314) Flip Angle] in degrees (°) [deg]

Examples

Note: For clarity, this example does not include all of the associated series and instances. In a real implementation, all series and instances belonging to the study are of course expected to be present in the resulting FHIR resource — the "series" or "instance" sequence is simply repeated for every series or instance and filled with the corresponding values.

Example of an ImagingStudy resource with the extension for MR metadata, including the modality-independent extensions for contrast media, instance details and device manufacturer:

ImagingStudy-mii-exa-bildgebung-bildgebungsstudie-mr

Usage info

Usages:

Use this Extension: MII PR Bildgebung Bildgebungsstudie
Examples for this Extension: ImagingStudy/mii-exa-bildgebung-bildgebungsstudie-mr-series and ImagingStudy/mii-exa-bildgebung-bildgebungsstudie-mr

You can also check for usages in the FHIR IG Statistics

Formal Views of Extension Content

Description of Profiles, Differentials, Snapshots, and their representations.

Differential Table
Snapshot Table
Statistics/References
AllAll

Name	Card.	Type	Description & Constraints Filter: Bindings Constraints Obligations
Extension	0..*	Extension	MII EX Bildgebung Modalität MR
Slices for extension			Content/Rules for all slices
extension:magneticFieldStrength	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"magneticFieldStrength"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: tesla
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: T
extension:scanningSequence	0..*	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"scanningSequence"
value[x]	0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence (required)
extension:scanningSequenceVariant	0..*	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"scanningSequenceVariant"
value[x]	0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence Variant (required)
extension:echoTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"echoTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:repetitionTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"repetitionTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:inversionTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"inversionTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:flipAngle	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"flipAngle"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: plane angle degree
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: deg
url	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-bildgebung/StructureDefinition/mii-ex-bildgebung-modalitaet-mr"
value[x]	0..0		Value of extension
Documentation for this format

Terminology Bindings (Differential)

Path	Status	Usage	ValueSet	Version	Source
Extension.extension:scanningSequence.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence	📦2027.0.0-ballot.1	This IG
Extension.extension:scanningSequenceVariant.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence Variant	📦2027.0.0-ballot.1	This IG

Name	Flags	Card.	Type	Description & Constraints Filter: Bindings Constraints Obligations
Extension		0..*	Extension	MII EX Bildgebung Modalität MR
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
extension:magneticFieldStrength		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"magneticFieldStrength"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: tesla
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: T
extension:scanningSequence		0..*	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"scanningSequence"
value[x]		0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence (required)
extension:scanningSequenceVariant		0..*	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"scanningSequenceVariant"
value[x]		0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence Variant (required)
extension:echoTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"echoTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:repetitionTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"repetitionTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:inversionTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"inversionTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:flipAngle		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"flipAngle"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: plane angle degree
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: deg
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-bildgebung/StructureDefinition/mii-ex-bildgebung-modalitaet-mr"
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Extension.extension:scanningSequence.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence	📦2027.0.0-ballot.1	This IG
Extension.extension:scanningSequenceVariant.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence Variant	📦2027.0.0-ballot.1	This IG

Constraints

Id	Grade	Path(s)	Description	Expression
ele-1	error	ALL elements	All FHIR elements must have a @value or children	`hasValue() or (children().count() > id.count())`
ext-1	error	ALL extensions	Must have either extensions or value[x], not both	`extension.exists() != value.exists()`

Summary

Complex Extension: Die Extension ermöglicht es die Ressourcen und Machbarkeitsanalysen auf MR Daten zu erweitern.

magneticFieldStrength: Quantity: An Extension
scanningSequence: CodeableConcept: An Extension
scanningSequenceVariant: CodeableConcept: An Extension
echoTime: Quantity: An Extension
repetitionTime: Quantity: An Extension
inversionTime: Quantity: An Extension
flipAngle: Quantity: An Extension

Differential ViewDifferential View

Name	Card.	Type	Description & Constraints Filter: Bindings Constraints Obligations
Extension	0..*	Extension	MII EX Bildgebung Modalität MR
Slices for extension			Content/Rules for all slices
extension:magneticFieldStrength	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"magneticFieldStrength"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: tesla
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: T
extension:scanningSequence	0..*	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"scanningSequence"
value[x]	0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence (required)
extension:scanningSequenceVariant	0..*	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"scanningSequenceVariant"
value[x]	0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence Variant (required)
extension:echoTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"echoTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:repetitionTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"repetitionTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:inversionTime	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"inversionTime"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: milliseconds
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: ms
extension:flipAngle	0..1	Extension	Extension
extension	0..0		Extension
url	1..1	uri	"flipAngle"
value[x]	0..1	SimpleQuantity	Value of extension
unit	0..1	string	Unit representation Required Pattern: plane angle degree
system	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	0..1	code	Coded form of the unit Required Pattern: deg
url	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-bildgebung/StructureDefinition/mii-ex-bildgebung-modalitaet-mr"
value[x]	0..0		Value of extension
Documentation for this format

Terminology Bindings (Differential)

Path	Status	Usage	ValueSet	Version	Source
Extension.extension:scanningSequence.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence	📦2027.0.0-ballot.1	This IG
Extension.extension:scanningSequenceVariant.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence Variant	📦2027.0.0-ballot.1	This IG

Snapshot View

Name	Flags	Card.	Type	Description & Constraints Filter: Bindings Constraints Obligations
Extension		0..*	Extension	MII EX Bildgebung Modalität MR
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
extension:magneticFieldStrength		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"magneticFieldStrength"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: tesla
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: T
extension:scanningSequence		0..*	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"scanningSequence"
value[x]		0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence (required)
extension:scanningSequenceVariant		0..*	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"scanningSequenceVariant"
value[x]		0..1	CodeableConcept	Value of extension Binding: MII VS Bildgebung Imaging Study MR Scanning Sequence Variant (required)
extension:echoTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"echoTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:repetitionTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"repetitionTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:inversionTime		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"inversionTime"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: milliseconds
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: ms
extension:flipAngle		0..1	Extension	Extension
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"flipAngle"
value[x]		0..1	SimpleQuantity	Value of extension
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
value	Σ	0..1	decimal	Numerical value (with implicit precision)
unit	Σ	0..1	string	Unit representation Required Pattern: plane angle degree
system	ΣC	0..1	uri	System that defines coded unit form Required Pattern: http://unitsofmeasure.org
code	Σ	0..1	code	Coded form of the unit Required Pattern: deg
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-bildgebung/StructureDefinition/mii-ex-bildgebung-modalitaet-mr"
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Extension.extension:scanningSequence.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence	📦2027.0.0-ballot.1	This IG
Extension.extension:scanningSequenceVariant.value[x]	Base	required	MII VS Bildgebung Imaging Study MR Scanning Sequence Variant	📦2027.0.0-ballot.1	This IG

Constraints

Id	Grade	Path(s)	Description	Expression
ele-1	error	ALL elements	All FHIR elements must have a @value or children	`hasValue() or (children().count() > id.count())`
ext-1	error	ALL extensions	Must have either extensions or value[x], not both	`extension.exists() != value.exists()`

Summary

Complex Extension: Die Extension ermöglicht es die Ressourcen und Machbarkeitsanalysen auf MR Daten zu erweitern.

magneticFieldStrength: Quantity: An Extension
scanningSequence: CodeableConcept: An Extension
scanningSequenceVariant: CodeableConcept: An Extension
echoTime: Quantity: An Extension
repetitionTime: Quantity: An Extension
inversionTime: Quantity: An Extension
flipAngle: Quantity: An Extension

Other representations of profile: CSV, Excel, Schematron

IG © 2024+ Medizininformatik Initiative. Package de.medizininformatikinitiative.kerndatensatz.bildgebung#2027.0.0-ballot.1 based on FHIR 4.0.1. Generated 2026-09-15
Links: Table of Contents | QA Report | netzwerk-universitaetsmedizin.de | medizininformatik-initiative.de | Legal notice
HL7®, FHIR® and the FHIR flame design are registered trademarks of Health Level Seven International. Their use does not constitute endorsement by HL7.
