Cascading Delete in Torch ​

Cascading delete is a critical feature for the Torch FHIR data extraction system that ensures referential integrity and proper cleanup when resources are removed during the extraction process. It is done in a queue based bidirectional manner, in the directions (parent → child) and (child → parent).

Problem Context ​

In FHIR systems, resources often reference each other through various relationship types:

  • Patient → Observation, DiagnosticReport, Condition, etc.
  • Encounter → Observation, Procedure, MedicationAdministration
  • DiagnosticReport → Observation (results)
  • Specimen → Observation (derived-from)

When resources fail validation checks (such as must-have conditions, consent requirements, or profile compliance), they need to be removed from the extraction batch. However, simply removing a resource can break referential integrity and leave "orphaned" resources that reference the deleted resource.

Parent Child Relationships ​

A parent-child relationship in Torch is defined by the extraction process. A parent resource group combination is one that is extracted first and may have child resources that depend on it (i.e. a referential chain).

  • Parent: A resource group containing a resource that has a reference attribute to another extracted resource by a certain group.
  • Child: The referenced resource group

Goal of Cascading Delete ​

Remove all resources whose referential chains are broken due to the deletion of a resource.

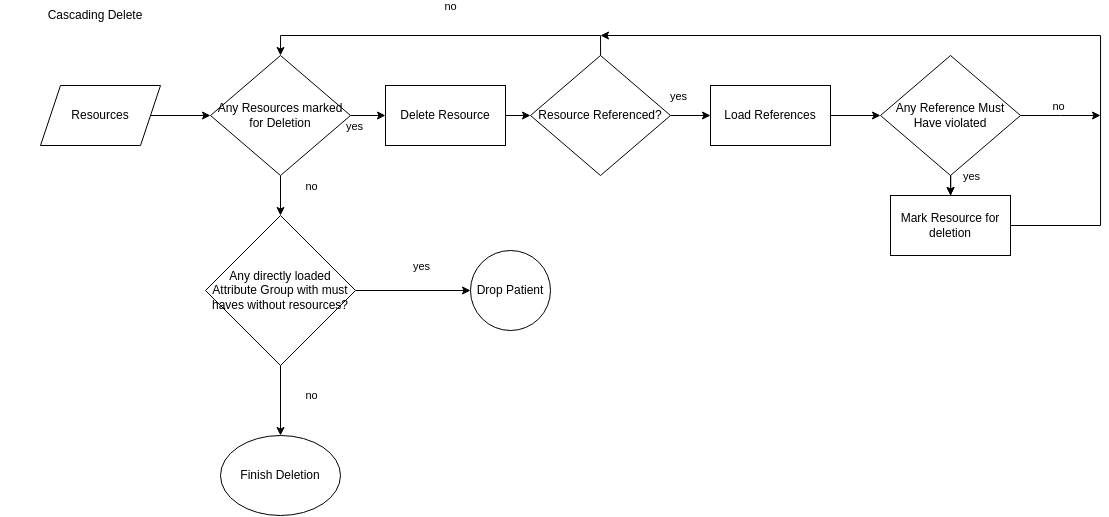

Approach ​

  1. Identify Parent-Child Relationships: During the reference resolve process, Torch identifies parent-child relationships based on the FHIR resource references and group assignment in the reference resolve.
  2. Mark Resources for Deletion: When a resource fails the group validation checks (consent,must-have), it is marked for deletion.
  3. Bi-directional Deletion
    • Parent to Child:
      • If a parent resource is marked for deletion, all connections to its children are removed.
      • If a child has no other parent, it is also marked for deletion.
      • Directly loaded resources have a "parent" by default, so they are not deleted by this step.
    • Child to Parent:
    • If a child resource is marked for deletion, it removes its reference to the parent.
    • If the parent has no other children:
      • the reference has to be checked for must-have condition
      • if the parent has no other children, and it was a must-have reference it is marked for deletion.
  4. Cleanup:
    • After all resources are processed, Torch performs a cleanup step to remove all resources marked for deletion.
    • This ensures that no orphaned resources remain in the system.
  5. Must Have Validation After cleanup it is checked if all directly loaded must have attribute are covered. If not the whole patient or core bundle respectively has a must have violation resulting in either a patient not being extracted or in the case of core resources the pipeline failing.

Cascading Delete Referential Chain Examples ​

✅ = kept ❌ = deleted ★ = must-have reference

Example 1: Child Deleted, Parent Kept ​

Patient/123
 └─ Encounter/abc
     ├─ Observation/obs1  ❌ deleted
     └─ Observation/obs2★
Patient/123 ✅ kept
 └─ Encounter/abc ✅ kept
     ├─ Observation/obs1  ❌ deleted
     └─ Observation/obs2★ ✅ kept

Example 2: Must Have Violation Results in Parent Deleted ​

Patient/456
 └─ Encounter/def
     ├─ Observation/obs3
     └─ Observation/obs5★ ❌ deleted
Patient/456 ✅ kept
 └─ Encounter/def ❌ deleted
     ├─ Observation/obs3  ❌ deleted
     └─ Observation/obs5★ ❌ deleted

Example 3: One Parent Deleted results in all children kept ​

Patient/456
├─ Encounter/def ❌ deleted
│ ├─ Observation/obs3
│ └─ Observation/obs5
└─ Encounter/xyz
  ├─ Observation/obs3
  └─ Observation/obs5
Patient/456 ✅ kept
├─ Encounter/def ❌ deleted
│ ├─ Observation/obs3 ✅ kept
│ └─ Observation/obs5 ✅ kept
└─ Encounter/xyz ✅ kept
  ├─ Observation/obs3 ✅ kept
  └─ Observation/obs5 ✅ kept

Example 3: All Parents Deleted results in all children kept ​

Patient/456 ✅ kept
├─ Encounter/def ❌ deleted
│ ├─ Observation/obs3
│ └─ Observation/obs5
└─ Encounter/xyz ❌ deleted
  ├─ Observation/obs3
  └─ Observation/obs5
Patient/456 ✅ kept
├─ Encounter/def ❌ deleted
│ ├─ Observation/obs3 ❌ deleted
│ └─ Observation/obs5 ❌ deleted
└─ Encounter/xyz ❌ deleted
  ├─ Observation/obs3 ❌ deleted
  └─ Observation/obs5  ❌ deleted
