Consent Handling in TORCH

TORCH implements privacy-aware consent handling to ensure that the extracted data strictly complies with patient permissions and applicable regulations.

since v1.0.0-beta.1 — FDPG-Project consent scope clarified

As of this release, TORCH exclusively evaluates the two MII consent provision codes required for FDPG "Zentrale Analyse" (centralised data extraction for researchers):

Code	OID	Role
MDAT wissenschaftlich nutzen EU DSGVO NIVEAU	2.16.840.1.113883.3.1937.777.24.5.3.8	Validity gate — today must fall within the provision period
MDAT erheben	2.16.840.1.113883.3.1937.777.24.5.3.6	Data-extraction window — resources outside this period are excluded

Both codes must appear together in the CRTDL cohort definition; TORCH rejects requests where only one is present. The optional retrospective modifiers (.45 / .46) extend .6's period back to 1900-01-01 when present in the same Consent resource and explicitly requested in the CRTDL.

All other MII consent codes (BIOMAT, KKDAT, IDAT, etc.) are silently ignored.

---

1. Consent Representation

• TORCH supports the FHIR Consent resource as the canonical way to represent patient consent.
• The MII broad consent model encodes each consented policy code as a sibling provision nested inside a single top-level deny provision. TORCH does not assume what real-world event a given Consent resource represents (an initial signing, a revocation, a recalculated consent, etc.) — it reads the permit and deny provisions directly and calculates the effective consent periods from them. A patient may have multiple Consent resources, each contributing its own provisions.
• Consent records define:
  • Who has granted consent
  • What data may be accessed
  • Purpose and permitted actions
  • Conditions or time limits

---

2. Supported Consent Codes

TORCH only processes consent provision codes listed in mappings/consent-code-config.json. This file can be edited manually to adjust the supported codes for a deployment. The codes shipped with TORCH represent the recommended MII default for FDPG-Project (Zentrale Analyse) use cases.

Each entry in the config describes a prospective code with:

Field	Meaning
validityGate	If true, today must fall within the patient's permitted period for this code — patient is excluded if not
required	Other codes that must co-occur with this one in the CRTDL cohort definition
retroModifiers	Optional modifier codes that extend this code's permitted period backwards to a fixed lookbackDate

Shipped default:

Code	OID	Role
MDAT wissenschaftlich nutzen EU DSGVO NIVEAU	2.16.840.1.113883.3.1937.777.24.5.3.8	Validity gate (today-in-period check)
MDAT erheben	2.16.840.1.113883.3.1937.777.24.5.3.6	Data-extraction window
MDAT retrospektiv speichern, verarbeiten	2.16.840.1.113883.3.1937.777.24.5.3.45	Retrospective modifier for .6 (optional)
MDAT retrospektiv wissenschaftlich nutzen EU DSGVO NIVEAU	2.16.840.1.113883.3.1937.777.24.5.3.46	Retrospective modifier for .6 (optional)

.8 and .6 are declared as mutually required — both must appear together in the CRTDL cohort definition. The retrospective modifiers .45 and .46 are optional and only take effect if they are also explicitly included in the CRTDL cohort definition — being listed in consent-code-config.json is not sufficient on its own. Codes not listed in consent-code-config.json are silently ignored.

---

3. Consent Evaluation Pipeline

Before any data extraction:

1. Extract consent codes from CRTDL — codes are read from the cohortDefinition inclusion criteria. TORCH extracts only the provision codes that are present and ignores their Boolean combination (AND/OR).
2. Validate co-occurrence — for every supported code present, all codes listed in its required field must also be present. If .6 appears without .8 (or vice-versa), the request is rejected with a ConsentFormatException.
3. Filter to supported codes — only prospective codes defined in consent-code-config.json are retained.
4. Fetch from FHIR — Active Consent resources are fetched for the supported codes, plus any retro modifier codes that were explicitly requested in the CRTDL.
5. Adjust by Encounter — for data-period codes (non-gate codes, i.e. .6), the start of each permitted provision is shifted to the start of the earliest overlapping Encounter if that Encounter start is earlier. Encounters without both a start and end date are ignored i.e. an open-ended (ongoing) encounter cannot anchor the shift. Gate codes (.8) are never encounter-adjusted by design. This step can be turned off entirely via TORCH_ENABLE_ENCOUNTER_SHIFT (default true); when disabled, no Encounter search is performed and provisions are used as fetched.
6. Order and merge, code by code — Consent resources sharing a dateTime form one signing event; events are processed in ascending dateTime order, and resources without dateTime form the first event. For each supported code, each event is folded into a running period: first the retro modifier reset (step 7), then each resource's own permit periods — all of them, only if that resource alone carries permits for all required codes (.6 AND .8) — are merged in, and finally every deny of that code in the event is subtracted. A later permit can therefore reinstate a period an earlier deny had removed, while within one event a deny always wins over a permit, and the result never depends on resource ids. Revocation documents that carry only a deny still count, in the order their dateTime places them.
7. Apply retrospective modifiers — only for modifier codes (.45/.46) explicitly requested in the CRTDL cohort definition (see step 4), evaluated as part of step 6 while each event is folded in:
   • If one of a resource's own permitted .6 provisions overlaps in time with a permitted retro modifier provision in the same resource, that .6 provision is extended back to 1900-01-01; other .6 permits in the resource are extended only if they overlap a retro modifier permit themselves. A retro modifier deny in the same resource subtracts from that extension before it is added — it never reduces the plain .6 permit period itself.
   • If any resource of an event carries a retro modifier deny for the code — regardless of period overlap, and whether or not it also carries a .6 permit of its own — the running total built up by earlier events is discarded before the event's permits are merged in. A single revocation of retrospective consent can therefore invalidate everything accumulated for that code up to that point, including permits from earlier, otherwise unrelated resources, but never a permit from the same event.
   • A retro modifier permit never has this replacing effect, even standing alone in its own resource: a grant must never leave a patient worse off than if the resource had not been sent at all. A .45/.46 permit with no .6 permit in the same resource simply contributes nothing.
8. Gate check — for each validity-gate code (.8), today must fall within the final merged period. If the check fails for any gate code the patient is excluded from the result.
9. Intersect data periods — the allowed periods of all data-period codes (.6) are intersected to produce the patient's final data-extraction window.
10. Enforce during extraction — resources whose consent data field (as configured in type_to_consent.json) falls outside the consent window are excluded from the result.

Consent resources without a dateTime element are skipped during fetch and never reach this pipeline (step 4) — step 6 requires every resource it processes to carry one, since ordering now determines the result.

Encounter Adjustment

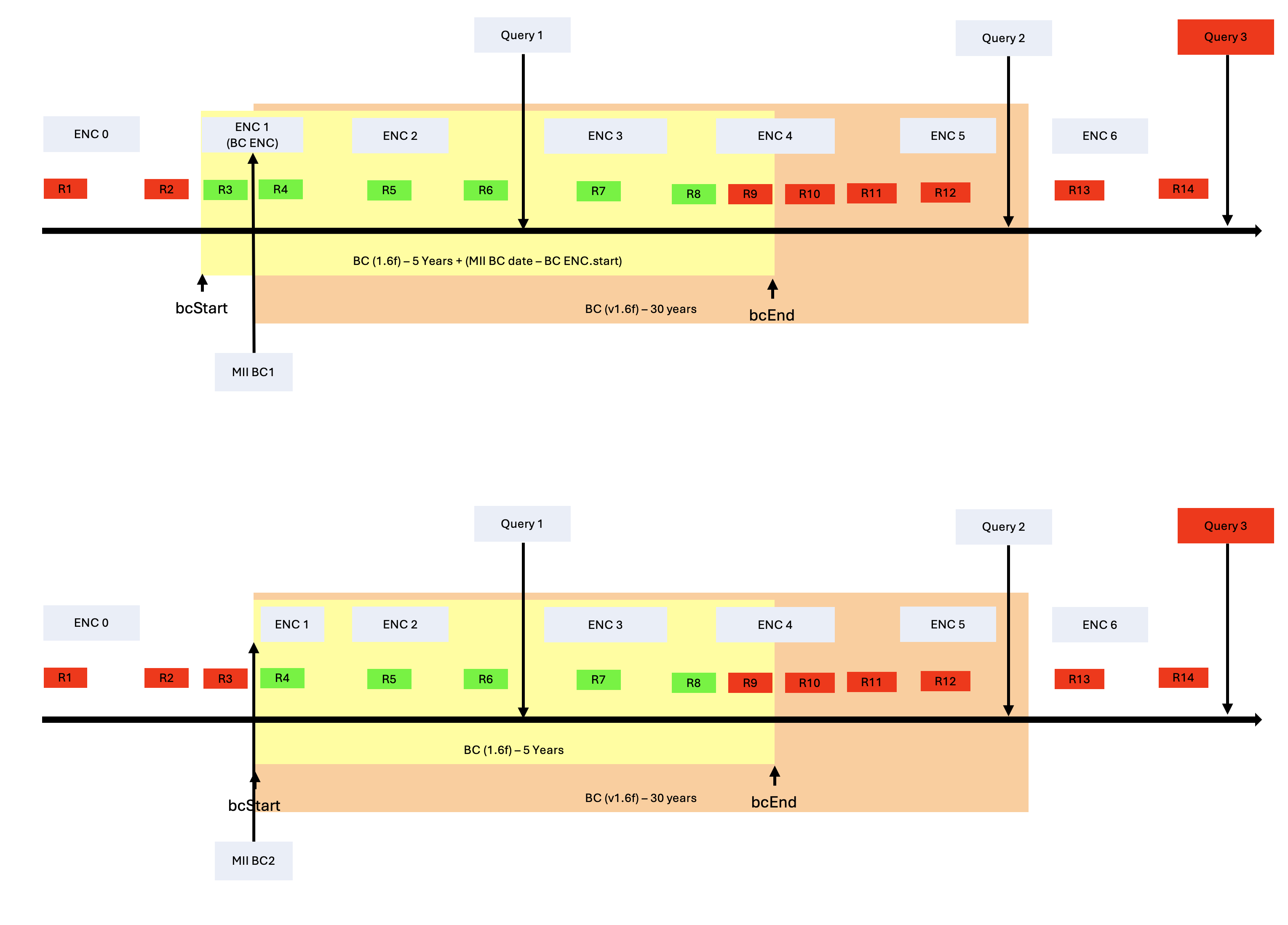

The diagram below shows two patients — MII BC1 (encounter adjustment applied) and MII BC2 (no adjustment) — to illustrate how step 5 shifts the .6 provision start.

In BC1, the .6 window is extended back to the start of the overlapping encounter (ENC 1), making an additional historical resource (R3) eligible for extraction compared to BC2 where the window starts at bcStart.

---

4. Validity Gate vs. Data-Extraction Window

.8 (MDAT wissenschaftlich nutzen EU DSGVO NIVEAU) and .6 (MDAT erheben) play distinct roles:

Code	Role	What it controls
.8	Validity gate	Is the patient's consent currently active? Today must be within the period.
.6	Data window	How far back in time may data be extracted?

Both must be present in the CRTDL. If .8 fails the gate check (e.g. the patient's consent has expired) the patient is excluded entirely — .6 is not evaluated.

Both codes' periods are taken at face value from the Consent resource — TORCH does not derive or validate them. For the MII broad consent, .8 is expected to span the signing day to signing day + 30 years, and .6 the signing day to signing day + 5 years.

---

5. Retrospective Modifier Semantics

The retrospective modifiers (.45, .46) act as period extenders for .6, and a retro modifier deny acts as a history reset — these are two distinct mechanisms:

Extension (retro modifier permit):

• A modifier is only applied if it was explicitly requested in the CRTDL.
• A modifier extends .6 only when a permitted instance of it appears in the same Consent resource as the .6 provision it extends, and their periods overlap within that resource. A .45 permit in resource B does not extend a .6 permit in resource A.
• When applied, the overlapping .6 provision is extended back to 1900-01-01, up to its own end. Other .6 permits in the same resource are extended only if they overlap a retro modifier permit themselves.
• A retro modifier deny in the same resource subtracts from that extension before it is added.
• If a patient has no permitted .6 provision in the same resource as the modifier, the modifier permit contributes nothing — it does not affect any other resource's .6 permit, past or future.

Reset (retro modifier deny):

• A retro modifier deny — for a code with retro modifiers configured and explicitly requested in the CRTDL — discards everything accumulated for that code from earlier signing events (see pipeline step 6/7), regardless of whether its period overlaps anything and regardless of whether the same resource also carries a .6 permit. This is intentionally stronger than a plain .6 deny: revoking retrospective consent is treated as invalidating the whole retrospective picture for that code, not just the time window the revocation names.
• The reset is applied before any .6 permit of the same signing event (all resources sharing its dateTime), so a .6 permit in the same resource as the retro modifier deny, or in another resource with the same dateTime, survives it — regardless of resource ids and of how many resources in the event carry a retro modifier deny.
• The reset is not permanent: a .6 permit in a later event counts again, but restores only what that permit itself defines — its own period, plus its own retro extension if it carries a matching retro modifier permit. History wiped by the reset is not brought back.
• Prospective code denies (.6 deny) reduce whatever is currently accumulated for .6 — including a retro-extended period — regardless of which resource granted it. Within one signing event they are applied after all of the event's permits, so a same-event .6 deny always wins over a same-event .6 permit. They do not trigger the reset above; only a retro modifier deny does.

The diagram below shows the two key cases — with and without a retro modifier deny.

Example:

Consent resource A (dateTime 2020-01-01):
  .8  2020–2050  permit
  .6  2020–2025  permit
  .45 2020–2025  permit   ← same resource, overlaps .6 → extends .6 to [1900-01-01, 2025-12-31]
  .45 2000–2009  deny     ← same resource, subtracts [2000-01-01, 2009-12-31] from that extension
  → running .6 total after A: [1900-01-01, 1999-12-31] ∪ [2010-01-01, 2025-12-31]

Consent resource B (dateTime 2023-01-01, revocation):
  .6  2023–2025  deny     ← subtracts from the running total, including the retro-extended part
  → running .6 total after B: [1900-01-01, 1999-12-31] ∪ [2010-01-01, 2022-12-31]

Consent resource C (dateTime 2024-01-01, a later addendum):
  .45 2024–2028  permit   ← no .6 permit in this resource, and it's a permit not a deny → no effect
  → running .6 total after C: unchanged

Consent resource D (dateTime 2025-01-01, revocation of retrospective consent):
  .45 2025–2028  deny     ← retro modifier deny, no period overlap with anything above → resets .6
  → running .6 total after D: empty (D carries no .6 permit of its own to rebuild from)

---

6. Enforcement in Data Processing

Consent is enforced at two points in the extraction pipeline — both before results are packaged into NDJSON bundles:

• Direct load — when patient resources are fetched from the FHIR server, each resource is checked against the patient's consent window. Resources outside the window are dropped before any further processing.
• Reference resolution — when referenced resources are fetched and assigned to a patient bundle, the same consent window check is applied. Resources outside the window are excluded from the bundle.

Core resources (resources outside the patient compartment) are not consent-filtered.

---

7. Integration with CRTDL

Consent codes are embedded in the cohortDefinition as inclusion criteria entries with context.code = "Einwilligung". Each entry carries one MII OID provision code in termCodes. When at least one such entry is present, TORCH enables consent enforcement for the entire extraction job. If no Einwilligung entries are present, consent enforcement is skipped and all resources are treated as consented.

{
  "inclusionCriteria": [
    [
      {
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        },
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.8",
            "display": "MDAT wissenschaftlich nutzen EU DSGVO NIVEAU",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ]
      }
    ],
    [
      {
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        },
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.6",
            "display": "MDAT erheben",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ]
      }
    ]
  ]
}

To additionally request the retrospective modifiers .45/.46 for a patient, include them alongside .6 in the cohort definition. TORCH ignores the Boolean grouping of inclusion criteria (see pipeline step 1) and only extracts the individual codes present — the retro modifiers only take effect when included like this in the CRTDL (see sections 2 and 5):

{
  "inclusionCriteria": [
    [
      {
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.8",
            "display": "MDAT wissenschaftlich nutzen EU DSGVO NIVEAU",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ],
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        }
      }
    ],
    [
      {
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.6",
            "display": "MDAT erheben",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ],
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        }
      },
      {
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.46",
            "display": "MDAT retrospektiv wissenschaftlich nutzen EU DSGVO NIVEAU",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ],
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        }
      },
      {
        "termCodes": [
          {
            "code": "2.16.840.1.113883.3.1937.777.24.5.3.45",
            "display": "MDAT retrospektiv speichern verarbeiten",
            "system": "urn:oid:2.16.840.1.113883.3.1937.777.24.5.3",
            "version": "1.0.7"
          }
        ],
        "context": {
          "code": "Einwilligung",
          "display": "Einwilligung",
          "system": "fdpg.mii.cds",
          "version": "1.0.0"
        }
      }
    ]
  ]
}

The consent check uses a specific date field per FHIR resource type to determine whether a resource falls within the patient's consent window. If no field is configured for a resource type, all resources of that type are considered consented (see type_to_consent.json).

---

8. Limitations and Considerations

• Within a single consent block in the cohort definition (CCDL), TORCH extracts the individual consent provision codes and ignores their Boolean combination — the co-occurrence and period logic described above is applied instead.
• Consent records must be up-to-date and accurately reflect patient permissions.
• Only the codes listed in consent-code-config.json are evaluated — all others are ignored.
• The shipped default config supports the MII FDPG-Project (Zentrale Analyse) consent codes; other use cases may are currently not supported.
• TORCH treats all data in the FHIR server as MDAT (Medizinische Daten).
• TORCH does not consider consent versioning — provision codes are assumed to be unique and to retain the same meaning across all versions of the consent profile.

---

Summary

Consent handling in TORCH is:

• Standards-based (FHIR Consent, MII KDS profile, MII broad consent structure)
• Per-patient, order-sensitive: Consent resources are grouped into signing events of equal dateTime and folded in ascending dateTime order (within an event, resets come first, then permits, then denies); permits only count from resources that carry the complete required package (.6 AND .8); a later permit can reinstate a period an earlier deny removed. Retro modifier extension stays scoped to the resource it appears in, but a retro modifier deny resets a code's whole history accumulated by earlier events, from any resource
• Driven by consent-code-config.json — no code changes required for new consent codes that follow the same combination logic as the default set. This is a fundamental limitation: TORCH can only handle the validity-gate
  • data-window + retrospective-modifier model hardcoded in its pipeline. New codes that require different combination semantics (e.g. a different gate structure, alternative period logic, or additional provision types) cannot be supported through configuration alone and require code changes.
