This profile describes an operation in oncology.

• The operation profile for oncology is derived from the MII procedure module and additionally specified for oBDS content. https://simplifier.net/guide/mii-ig-modul-prozedur-2024-de/MIIIGModulProzedur/TechnischeImplementierung/FHIRProfile/Prozedur-Procedure.page.md?version=current

Category and code

• The MII procedure recommends mapping the category using the OPS main categories transferred into SNOMED (https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/ValueSet/procedures-category-sct), where the SNOMED code 38771300 corresponds to OPS category "5 - Operations". However, according to oBDS, in justified cases a different coding (e.g. 103693007 for "1 - Diagnostic measures") may also be entered here. For this reason, the category is not further restricted.
• The exact type of procedure is coded in the Procedure.code field. IMPORTANT: Every Procedure MUST have a code - either OPS or SNOMED CT.
• Primarily an OPS code SHOULD be used. If no matching OPS code exists, a SNOMED CT code MUST be chosen.
• At most one OPS value SHOULD be coded per Procedure resource. Additional procedures are represented as individual Procedure resources.
• Note: Within the KDS module Oncology, the overarching MII procedure is also used to represent radiotherapy and systemic/watchful-waiting therapy. For the special aspects regarding categories and codes - see Radiotherapy: Procedure and Systemic Therapy: Procedure.

Multi-part procedures and related operations

In complex oncological procedures, several surgical procedures are often performed in one session. Since only one OPS code should be coded per Procedure resource, two modeling approaches are supported:

Approach 1: Parent Procedure with general code

IMPORTANT: A Procedure MUST have either an OPS code OR a SNOMED CT code. If no matching OPS code exists for the parent Procedure, a suitable SNOMED CT code MUST be chosen.

1. Parent Procedure: A main Procedure with a general SNOMED CT code for the location/type of the procedure
   • Procedure.code: SNOMED CT code (e.g. 86481000 "Laparotomy (procedure)")
   • Procedure.code.coding[ops]: Remains empty, since no specific OPS code exists
   • This Procedure SHOULD conform to the MII_PR_Onko_Operation profile
   • Note: The SNOMED CT code must be chosen from available SNOMED CT concepts
2. Detailed sub-Procedures: Individual Procedure resources for each specific OPS code
   • Linked via Procedure.partOf to the parent Procedure
   • Each with its specific OPS code

Example:

Procedure/haupteingriff (SNOMED: 176282005 "Resektion des Rektums")
├── Procedure/teileingriff1 (partOf → haupteingriff)
│   └── OPS: 5-484.35 "Rektumresektion mit Anastomose"
└── Procedure/teileingriff2 (partOf → haupteingriff)
    └── OPS: 5-469.21 "Andere Operationen am Darm"

Approach 2: Procedures of equal standing

For complex tumor operations where the hierarchy is not clear:

1. All Procedures of equal standing: Each Procedure represents one OPS code
2. Common parent Procedure optional: Can serve as a grouping
3. Alternative: Choose one of the Procedures as the "main Procedure" (the decision may be arbitrary)

Note on harmonization: The decision as to which Procedure counts as the "main Procedure" can be difficult in complex tumor operations and can hardly be harmonized post hoc.

Common aspects for multi-part procedures:

• Timing: All linked procedures should have the same performedDateTime if they were performed in one session
• Intent: The extension for the operation intent should be consistent across all linked procedures
• Complications: Can be documented on the affected individual procedure or on the parent Procedure
• Residual status: The local residual status is documented on the resecting procedure
• References: All Procedures should reference the same primary diagnosis (reasonReference) and, if applicable, a tumor board recommendation (basedOn)

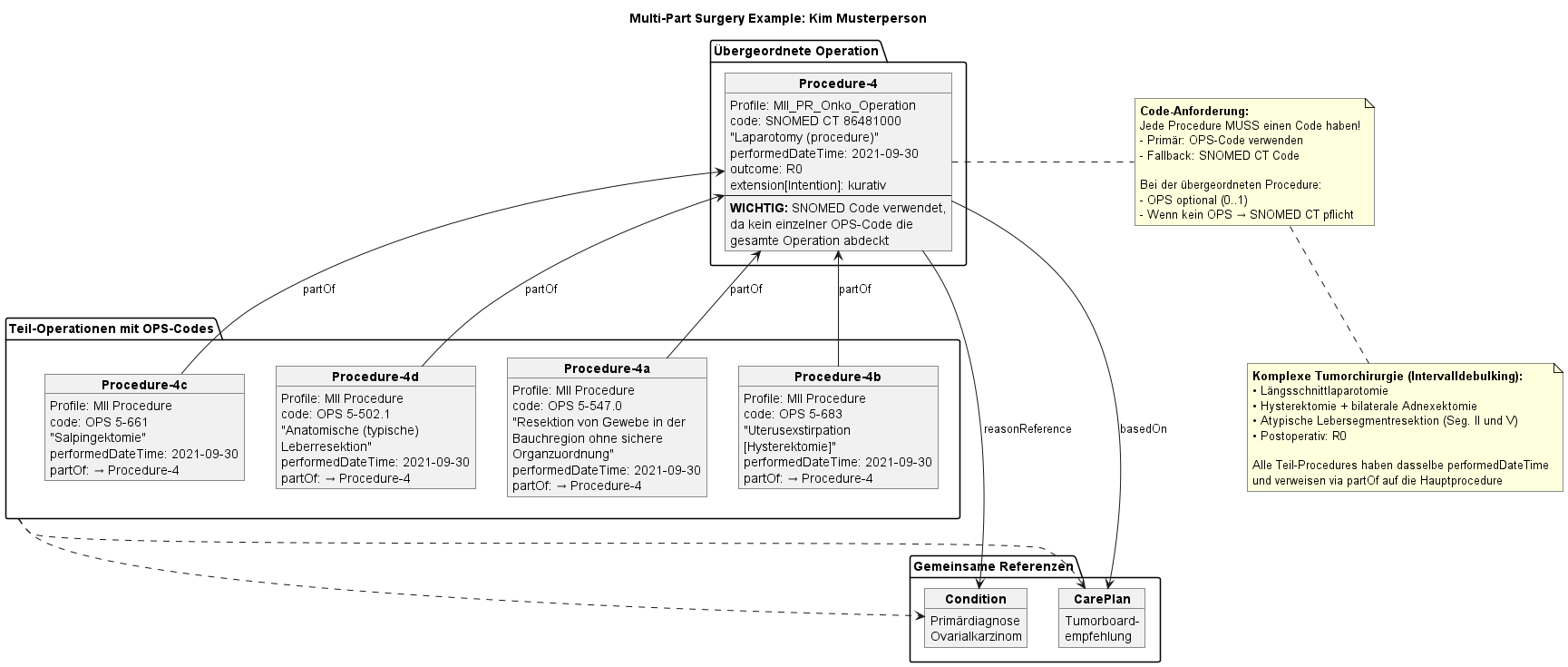

Visualization using the example of Kim Musterperson

Extensions

Intent

The MII procedure module already has an extension Intent of the procedure with a binding to SNOMED CT codes. However, since the intent of the operation is captured in oBDS via an oBDS-specific answer set, the procedure was extended with an additional element "Intent". Existing extensions of the MII procedure module are optional and not directly relevant for the mapping from oBDS.

Further information: Extension Intent (Operation)

Urgency (type of procedure)

The "Urgency" extension captures the modality of procedure performance. This data point originally comes from the organ-specific module Colorectal Carcinoma (KRK 6 oBDS 2021), but is universally applicable to all Procedures and was therefore integrated into the general Operation profile.

The extension distinguishes between:

• E: Elective procedure (planned procedure)
• N: Emergency procedure
• U: Unknown

This extension is particularly relevant for quality assurance and statistical evaluations, since emergency procedures often show different outcomes and complication rates than planned procedures. Although originally defined for colorectal procedures, the distinction between elective and emergency procedures is clinically relevant for all surgical procedures.

Usage:

* extension[urgency].valueCodeableConcept = $mii-cs-onko-operation-urgency#E "Elektiveingriff"

Further information: Extension Urgency (type of procedure)

Residual status and further observations

The oBDS provides for capturing the R status when tumor tissue is resected. Depending on the procedure performed, the assessment of residual status should be made either locally or globally. These are captured in oBDS as two different data points. In the present FHIR profiling, the local residual status (where applicable) is coded under Procedure.outcome. The global residual status is captured via a separate Observation (see Residual status: Observation).

In addition to the residual status, there are further data points that can reference an operation and are reported in oBDS together with it. These include the histological examinations (lymph nodes, grading) as well as ICD-O morphology, TNM and/or other classifications where applicable.

References to other profiles

An operation captured and reported as part of the cancer registry is often based on a therapy recommendation from a tumor board. In this case, a link between the elements should be established via Procedure.basedOn(Reference(CarePlan)). Furthermore, the operation references the primary diagnosis via Procedure.reasonReference.

Conformance

This profiling is compatible with the procedure profile of the ISiK basic modules level 4. https://simplifier.net/isik-basis-v4/isikprozedur

Mapping dataset to FHIR

The mapping of the dataset fields is documented in the logical model: MII LM Onkologie.

Mapping Uniform Oncological Basic Dataset (oBDS) to FHIR

The oBDS mappings are recorded in the artefact view of this profile: MII PR Onkologie Operation.

Examples

mii-exa-onko-operation-1

• Key Elements Table
• Differential Table
• Snapshot Table
• Statistics/References
• All

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure	C	0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient Constraints: proc-mii-1
id	SΣ	0..1	id	Logical id of this artifact
meta	SΣ	0..1	Meta	Metadata about the resource
source	SΣ	0..1	uri	Identifies where the resource comes from
profile	SΣ	0..*	canonical(StructureDefinition)	Profiles this resource claims to conform to
implicitRules	?!Σ	0..1	uri	A set of rules under which this content was created
Slices for extension	S	1..*	Extension	Extension Slice: Unordered, Open by value:url
extension:Dokumentationsdatum	S	0..1	(Complex)	Dokumentationsdatum URL: http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum"
value[x]	S	1..1	dateTime	Value of extension
extension:durchfuehrungsabsicht	S	0..1	(Complex)	Durchführungsabsicht URL: https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht
extension		0..0		Extension Slice: Unordered, Open by value:url
url	S	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht"
value[x]	S	1..1	Coding	Value of extension Binding: MII VS Prozedur Durchführungsabsicht [SNOMED CT] (required)
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Intention (required)
text	SΣ	0..1	string	Plain text representation of the concept
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Urgency (required)
text	SΣ	0..1	string	Plain text representation of the concept
modifierExtension	?!	0..*	Extension	Extensions that cannot be ignored
Slices for basedOn	SΣ	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	SΣ	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	SΣ	0..*	Reference(Observation | Procedure)	Part of referenced event
status	?!SΣ	1..1	code	Status Binding: EventStatus (required): A code specifying the state of the procedure.
category	SΣ	0..1	CodeableConcept	Kategorie Binding: ProcedureCategoryCodes(SNOMEDCT) (example): A code that classifies a procedure for searching, sorting and display purposes.
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur OPS Kategorien [SNOMED CT] (preferred) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
version		0..1	string	Version of the system - if relevant
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
code	SΣC	1..1	CodeableConcept	Code Binding: ProcedureCodes(SNOMEDCT) (example): A code to identify a specific procedure . Constraints: sct-ops-1
Slices for coding	SΣ	1..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:ops	SΣ	0..1	CodingOPS	OPS-Kode der Operation Binding: MII VS Prozedur OPS (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation	S	0..1	(Complex)	Seitenlokalisation (OPS-Seitenzusatz R/L/B) URL: http://fhir.de/StructureDefinition/seitenlokalisation
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/seitenlokalisation"
value[x]	S	1..1	Coding	Value of extension Binding: KBV_VS_SFHIR_ICD_SEITENLOKALISATION (required)
system	SΣ	1..1	uri	Identity of the terminology system
code	SΣ	1..1	code	Symbol in syntax defined by the system
system	SΣ	1..1	uri	Canonische CodeSystem URL für OPS Fixed Value: http://fhir.de/CodeSystem/bfarm/ops
version	SΣ	1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code	SΣC	1..1	code	Der OPS-Code Constraints: ops-regex Example Einfacher OPS-Code: 5-470
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur Prozeduren [SNOMED CT] (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
version		0..1	string	Version of the system - if relevant
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
subject	SΣ	1..1	Reference(Patient)	Who the procedure was performed on
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
encounter	SΣ	0..1	Reference(Encounter)	Kontakt (Aufenthaltsbezug)
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
Slices for performed[x]	SΣ	1..1	dateTime	Durchführungsdatum Slice: Unordered, Closed by type:$this
performed[x]:performedDateTime	SΣ	0..1	dateTime	When the procedure was performed
performed[x]:performedPeriod	SΣ	0..1	Period	Durchführungszeitraum
reasonReference	SΣ	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
bodySite	SΣ	0..*	CodeableConcept	Körperstelle Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.
Slices for extension				Content/Rules for all slices
extension:bodySite		0..1	Reference(BodyStructure)	Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:system
coding:snomed-ct	SΣ	0..1	Coding	SNOMED CT Code
system	SΣ	1..1	uri	Identity of the terminology system Required Pattern: http://snomed.info/sct
version	SΣ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
outcome	SΣ	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
coding	Σ	0..*	Coding	Lokaler Residualstatus
system	SΣ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
code	SΣ	0..1	code	Symbol in syntax defined by the system
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this Binding: Condition/Problem/DiagnosisCodes (example): Codes describing complications that resulted from a procedure.
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
coding	Σ	0..*	Coding	Komplikation der OP laut oBDS
system	Σ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
code	SΣ	1..1	code	Symbol in syntax defined by the system
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
coding	Σ	0..*	Coding	Komplikation der OP Sonstige ICD-10
system	Σ	1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
code	Σ	1..1	code	Symbol in syntax defined by the system
note	S	0..*	Annotation	Hinweis
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Procedure.extension:durchfuehrungsabsicht.​value[x]	Base	required	MII VS Prozedur Durchführungsabsicht [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.extension:Intention.​value[x]	Base	required	MII VS Onkologie Operation Intention	📦2027.0.0-ballot.1	This IG
Procedure.extension:Urgency.​value[x]	Base	required	MII VS Onkologie Operation Urgency	📦2027.0.0-ballot.1	This IG
Procedure.status	Base	required	EventStatus	📍4.0.1	FHIR Std.
Procedure.category	Base	example	Procedure Category Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.category.coding:sct	Base	preferred	MII VS Prozedur OPS Kategorien [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code	Base	example	Procedure Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.code.coding:ops	Base	required	MII VS Prozedur OPS	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code.coding:ops.​extension:Seitenlokalisation.​value[x]	Base	required	KBV_VS_SFHIR_ICD_SEITENLOKALISATION	⏿1.00	127.0.0.1
Procedure.code.coding:sct	Base	required	MII VS Prozedur Prozeduren [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.bodySite	Base	example	SNOMED CT Body Structures	📍4.0.1	FHIR Std.
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication	Base	example	Condition/Problem/Diagnosis Codes	📍4.0.1	FHIR Std.
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1

Constraints

Id	Grade	Path(s)	Description	Expression
dom-2	error	Procedure	If the resource is contained in another resource, it SHALL NOT contain nested Resources	contained.contained.empty()
dom-3	error	Procedure	If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource	contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty()
dom-4	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated	contained.meta.versionId.empty() and contained.meta.lastUpdated.empty()
dom-5	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a security label	contained.meta.security.empty()
dom-6	best practice	Procedure	A resource should have narrative for robust management	text.`div`.exists()
ele-1	error	**ALL** elements	All FHIR elements must have a @value or children	hasValue() or (children().count() > id.count())
ext-1	error	**ALL** extensions	Must have either extensions or value[x], not both	extension.exists() != value.exists()
ops-regex	warning	Procedure.code.coding:ops.code	In code sind nur gültige OPS-Codes ohne Zusätze erlaubt	matches('^[1|3|5|6|8|9]-[a-zA-Z0-9]{3}([.][a-zA-Z0-9]{1,2})?$')
proc-mii-1	error	Procedure	Falls die Prozedur per OPS kodiert wird, MUSS eine SNOMED-CT kodierte Category abgebildet werden	code.coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists() implies category.coding.where(system = 'http://snomed.info/sct').exists()
sct-ops-1	error	Procedure.code	Eine Prozedur MUSS mit OPS oder SNOMED-CT kodiert werden.	coding.where(system = 'http://snomed.info/sct').exists() or coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists()

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure		0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient
extension		1..*	Extension	Extension
Slices for extension				Content/Rules for all slices
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
value[x]
coding
code		1..1	code	Symbol in syntax defined by the system
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
value[x]
coding
code		1..1	code	Symbol in syntax defined by the system
Slices for basedOn	S	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	S	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	S	0..*	Reference(Observation | Procedure)	Part of referenced event
code
Slices for coding				Content/Rules for all slices
coding:ops		0..1	CodingOPS	OPS-Kode der Operation
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation		0..1	ExtensionSeitenlokalisation	Seitenlokalisation (OPS-Seitenzusatz R/L/B)
version		1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code		1..1	code	Der OPS-Code
subject		1..1	Reference(Patient)	Who the procedure was performed on
performed[x]		1..1	dateTime	Durchführungsdatum
Slices for performed[x]				Content/Rules for all slices
performed[x]:performedDateTime		0..1	dateTime	When the procedure was performed
reasonReference	S	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
outcome	S	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
coding		0..*	Coding	Lokaler Residualstatus
system	S	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
code	S	0..1	code	Symbol in syntax defined by the system
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
coding		0..*	Coding	Komplikation der OP laut oBDS
system		0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
code	S	1..1	code	Symbol in syntax defined by the system
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
coding		0..*	Coding	Komplikation der OP Sonstige ICD-10
system		1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
code		1..1	code	Symbol in syntax defined by the system
Documentation for this format

Terminology Bindings (Differential)

Path	Status	Usage	ValueSet	Version	Source
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure	C	0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient Constraints: proc-mii-1
id	SΣ	0..1	id	Logical id of this artifact
meta	SΣ	0..1	Meta	Metadata about the resource
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
versionId	Σ	0..1	id	Version specific identifier
lastUpdated	Σ	0..1	instant	When the resource version last changed
source	SΣ	0..1	uri	Identifies where the resource comes from
profile	SΣ	0..*	canonical(StructureDefinition)	Profiles this resource claims to conform to
security	Σ	0..*	Coding	Security Labels applied to this resource Binding: All Security Labels (extensible): Security Labels from the Healthcare Privacy and Security Classification System.
tag	Σ	0..*	Coding	Tags applied to this resource Binding: CommonTags (example): Codes that represent various types of tags, commonly workflow-related; e.g. "Needs review by Dr. Jones".
implicitRules	?!Σ	0..1	uri	A set of rules under which this content was created
language		0..1	code	Language of the resource content Binding: CommonLanguages (preferred): A human language. Additional Bindings Purpose AllLanguages Max Binding
text		0..1	Narrative	Text summary of the resource, for human interpretation This profile does not constrain the narrative in regard to content, language, or traceability to data elements
contained		0..*	Resource	Contained, inline Resources
Slices for extension	S	1..*	Extension	Extension Slice: Unordered, Open by value:url
extension:Dokumentationsdatum	S	0..1	(Complex)	Dokumentationsdatum URL: http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum"
value[x]	S	1..1	dateTime	Value of extension
extension:durchfuehrungsabsicht	S	0..1	(Complex)	Durchführungsabsicht URL: https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url	S	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht"
value[x]	S	1..1	Coding	Value of extension Binding: MII VS Prozedur Durchführungsabsicht [SNOMED CT] (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Intention (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Code defined by a terminology system
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Fixed Value: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-intention
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	SΣ	0..1	string	Plain text representation of the concept
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Urgency (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Code defined by a terminology system
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Fixed Value: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-urgency
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	SΣ	0..1	string	Plain text representation of the concept
modifierExtension	?!	0..*	Extension	Extensions that cannot be ignored
identifier	Σ	0..*	Identifier	External Identifiers for this procedure
instantiatesCanonical	Σ	0..*	canonical(PlanDefinition | ActivityDefinition | Measure | OperationDefinition | Questionnaire)	Instantiates FHIR protocol or definition
instantiatesUri	Σ	0..*	uri	Instantiates external protocol or definition
Slices for basedOn	SΣ	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	SΣ	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	SΣ	0..*	Reference(Observation | Procedure)	Part of referenced event
status	?!SΣ	1..1	code	Status Binding: EventStatus (required): A code specifying the state of the procedure.
statusReason	Σ	0..1	CodeableConcept	Reason for current status Binding: ProcedureNotPerformedReason(SNOMED-CT) (example): A code that identifies the reason a procedure was not performed.
category	SΣ	0..1	CodeableConcept	Kategorie Binding: ProcedureCategoryCodes(SNOMEDCT) (example): A code that classifies a procedure for searching, sorting and display purposes.
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur OPS Kategorien [SNOMED CT] (preferred) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
code	SΣC	1..1	CodeableConcept	Code Binding: ProcedureCodes(SNOMEDCT) (example): A code to identify a specific procedure . Constraints: sct-ops-1
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for coding	SΣ	1..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:ops	SΣ	0..1	CodingOPS	OPS-Kode der Operation Binding: MII VS Prozedur OPS (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation	S	0..1	(Complex)	Seitenlokalisation (OPS-Seitenzusatz R/L/B) URL: http://fhir.de/StructureDefinition/seitenlokalisation
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/seitenlokalisation"
value[x]	S	1..1	Coding	Value of extension Binding: KBV_VS_SFHIR_ICD_SEITENLOKALISATION (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Canonische CodeSystem URL für OPS Fixed Value: http://fhir.de/CodeSystem/bfarm/ops
version	SΣ	1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code	SΣC	1..1	code	Der OPS-Code Constraints: ops-regex Example Einfacher OPS-Code: 5-470
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur Prozeduren [SNOMED CT] (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
subject	SΣ	1..1	Reference(Patient)	Who the procedure was performed on
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
type	Σ	0..1	uri	Type the reference refers to (e.g. "Patient") Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).
identifier	Σ	0..1	Identifier	Logical reference, when literal reference is not known
display	Σ	0..1	string	Text alternative for the resource
encounter	SΣ	0..1	Reference(Encounter)	Kontakt (Aufenthaltsbezug)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
type	Σ	0..1	uri	Type the reference refers to (e.g. "Patient") Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).
identifier	Σ	0..1	Identifier	Logical reference, when literal reference is not known
display	Σ	0..1	string	Text alternative for the resource
Slices for performed[x]	SΣ	1..1	dateTime	Durchführungsdatum Slice: Unordered, Closed by type:$this
performed[x]:performedDateTime	SΣ	0..1	dateTime	When the procedure was performed
performed[x]:performedPeriod	SΣ	0..1	Period	Durchführungszeitraum
recorder	Σ	0..1	Reference(Patient | RelatedPerson | Practitioner | PractitionerRole)	Who recorded the procedure
asserter	Σ	0..1	Reference(Patient | RelatedPerson | Practitioner | PractitionerRole)	Person who asserts this procedure
performer	Σ	0..*	BackboneElement	The people who performed the procedure
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
modifierExtension	?!Σ	0..*	Extension	Extensions that cannot be ignored even if unrecognized
function	Σ	0..1	CodeableConcept	Type of performance Binding: ProcedurePerformerRoleCodes (example): A code that identifies the role of a performer of the procedure.
actor	Σ	1..1	Reference(Practitioner | PractitionerRole | Organization | Patient | RelatedPerson | Device)	The reference to the practitioner
onBehalfOf		0..1	Reference(Organization)	Organization the device or practitioner was acting for
location	Σ	0..1	Reference(Location)	Where the procedure happened
reasonCode	Σ	0..*	CodeableConcept	Coded reason procedure performed Binding: ProcedureReasonCodes (example): A code that identifies the reason a procedure is required.
reasonReference	SΣ	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
bodySite	SΣ	0..*	CodeableConcept	Körperstelle Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
extension:bodySite		0..1	Reference(BodyStructure)	Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:system
coding:snomed-ct	SΣ	0..1	Coding	SNOMED CT Code
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Required Pattern: http://snomed.info/sct
version	SΣ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
outcome	SΣ	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Lokaler Residualstatus
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	0..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
report		0..*	Reference(DiagnosticReport | DocumentReference | Composition)	Any report resulting from the procedure
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this Binding: Condition/Problem/DiagnosisCodes (example): Codes describing complications that resulted from a procedure.
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Komplikation der OP laut oBDS
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Komplikation der OP Sonstige ICD-10
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
complicationDetail		0..*	Reference(Condition)	A condition that is a result of the procedure
followUp		0..*	CodeableConcept	Instructions for follow up Binding: ProcedureFollowUpCodes(SNOMEDCT) (example): Specific follow up required for a procedure e.g. removal of sutures.
note	S	0..*	Annotation	Hinweis
focalDevice		0..*	BackboneElement	Manipulated, implanted, or removed device
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
modifierExtension	?!Σ	0..*	Extension	Extensions that cannot be ignored even if unrecognized
action		0..1	CodeableConcept	Kind of change to device Binding: ProcedureDeviceActionCodes (preferred): A kind of change that happened to the device during the procedure.
manipulated		1..1	Reference(Device)	Device that was changed
usedReference		0..*	Reference(Device | Medication | Substance)	Items used during procedure
usedCode		0..*	CodeableConcept	Coded items used during the procedure Binding: FHIRDeviceTypes (example): Codes describing items used during a procedure.
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Procedure.meta.security	Base	extensible	SecurityLabels	📍4.0.1	FHIR Std.
Procedure.meta.tag	Base	example	Common Tags	📍4.0.1	FHIR Std.
Procedure.language	Base	preferred	Common Languages	📍4.0.1	FHIR Std.
Procedure.extension:durchfuehrungsabsicht.​value[x]	Base	required	MII VS Prozedur Durchführungsabsicht [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.extension:Intention.​value[x]	Base	required	MII VS Onkologie Operation Intention	📦2027.0.0-ballot.1	This IG
Procedure.extension:Urgency.​value[x]	Base	required	MII VS Onkologie Operation Urgency	📦2027.0.0-ballot.1	This IG
Procedure.status	Base	required	EventStatus	📍4.0.1	FHIR Std.
Procedure.statusReason	Base	example	Procedure Not Performed Reason (SNOMED-CT)	📍4.0.1	FHIR Std.
Procedure.category	Base	example	Procedure Category Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.category.coding:sct	Base	preferred	MII VS Prozedur OPS Kategorien [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code	Base	example	Procedure Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.code.coding:ops	Base	required	MII VS Prozedur OPS	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code.coding:ops.​extension:Seitenlokalisation.​value[x]	Base	required	KBV_VS_SFHIR_ICD_SEITENLOKALISATION	⏿1.00	127.0.0.1
Procedure.code.coding:sct	Base	required	MII VS Prozedur Prozeduren [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.subject.type	Base	extensible	ResourceType	📍4.0.1	FHIR Std.
Procedure.encounter.​type	Base	extensible	ResourceType	📍4.0.1	FHIR Std.
Procedure.performer.​function	Base	example	Procedure Performer Role Codes	📍4.0.1	FHIR Std.
Procedure.reasonCode	Base	example	Procedure Reason Codes	📍4.0.1	FHIR Std.
Procedure.bodySite	Base	example	SNOMED CT Body Structures	📍4.0.1	FHIR Std.
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication	Base	example	Condition/Problem/Diagnosis Codes	📍4.0.1	FHIR Std.
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1
Procedure.followUp	Base	example	Procedure Follow up Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.focalDevice.​action	Base	preferred	Procedure Device Action Codes	📍4.0.1	FHIR Std.
Procedure.usedCode	Base	example	FHIR Device Types	📍4.0.1	FHIR Std.

Constraints

Id	Grade	Path(s)	Description	Expression
dom-2	error	Procedure	If the resource is contained in another resource, it SHALL NOT contain nested Resources	contained.contained.empty()
dom-3	error	Procedure	If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource	contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty()
dom-4	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated	contained.meta.versionId.empty() and contained.meta.lastUpdated.empty()
dom-5	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a security label	contained.meta.security.empty()
dom-6	best practice	Procedure	A resource should have narrative for robust management	text.`div`.exists()
ele-1	error	**ALL** elements	All FHIR elements must have a @value or children	hasValue() or (children().count() > id.count())
ext-1	error	**ALL** extensions	Must have either extensions or value[x], not both	extension.exists() != value.exists()
ops-regex	warning	Procedure.code.coding:ops.code	In code sind nur gültige OPS-Codes ohne Zusätze erlaubt	matches('^[1|3|5|6|8|9]-[a-zA-Z0-9]{3}([.][a-zA-Z0-9]{1,2})?$')
proc-mii-1	error	Procedure	Falls die Prozedur per OPS kodiert wird, MUSS eine SNOMED-CT kodierte Category abgebildet werden	code.coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists() implies category.coding.where(system = 'http://snomed.info/sct').exists()
sct-ops-1	error	Procedure.code	Eine Prozedur MUSS mit OPS oder SNOMED-CT kodiert werden.	coding.where(system = 'http://snomed.info/sct').exists() or coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists()

Key Elements View

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure	C	0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient Constraints: proc-mii-1
id	SΣ	0..1	id	Logical id of this artifact
meta	SΣ	0..1	Meta	Metadata about the resource
source	SΣ	0..1	uri	Identifies where the resource comes from
profile	SΣ	0..*	canonical(StructureDefinition)	Profiles this resource claims to conform to
implicitRules	?!Σ	0..1	uri	A set of rules under which this content was created
Slices for extension	S	1..*	Extension	Extension Slice: Unordered, Open by value:url
extension:Dokumentationsdatum	S	0..1	(Complex)	Dokumentationsdatum URL: http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum"
value[x]	S	1..1	dateTime	Value of extension
extension:durchfuehrungsabsicht	S	0..1	(Complex)	Durchführungsabsicht URL: https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht
extension		0..0		Extension Slice: Unordered, Open by value:url
url	S	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht"
value[x]	S	1..1	Coding	Value of extension Binding: MII VS Prozedur Durchführungsabsicht [SNOMED CT] (required)
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Intention (required)
text	SΣ	0..1	string	Plain text representation of the concept
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Urgency (required)
text	SΣ	0..1	string	Plain text representation of the concept
modifierExtension	?!	0..*	Extension	Extensions that cannot be ignored
Slices for basedOn	SΣ	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	SΣ	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	SΣ	0..*	Reference(Observation | Procedure)	Part of referenced event
status	?!SΣ	1..1	code	Status Binding: EventStatus (required): A code specifying the state of the procedure.
category	SΣ	0..1	CodeableConcept	Kategorie Binding: ProcedureCategoryCodes(SNOMEDCT) (example): A code that classifies a procedure for searching, sorting and display purposes.
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur OPS Kategorien [SNOMED CT] (preferred) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
version		0..1	string	Version of the system - if relevant
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
code	SΣC	1..1	CodeableConcept	Code Binding: ProcedureCodes(SNOMEDCT) (example): A code to identify a specific procedure . Constraints: sct-ops-1
Slices for coding	SΣ	1..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:ops	SΣ	0..1	CodingOPS	OPS-Kode der Operation Binding: MII VS Prozedur OPS (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation	S	0..1	(Complex)	Seitenlokalisation (OPS-Seitenzusatz R/L/B) URL: http://fhir.de/StructureDefinition/seitenlokalisation
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/seitenlokalisation"
value[x]	S	1..1	Coding	Value of extension Binding: KBV_VS_SFHIR_ICD_SEITENLOKALISATION (required)
system	SΣ	1..1	uri	Identity of the terminology system
code	SΣ	1..1	code	Symbol in syntax defined by the system
system	SΣ	1..1	uri	Canonische CodeSystem URL für OPS Fixed Value: http://fhir.de/CodeSystem/bfarm/ops
version	SΣ	1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code	SΣC	1..1	code	Der OPS-Code Constraints: ops-regex Example Einfacher OPS-Code: 5-470
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur Prozeduren [SNOMED CT] (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
version		0..1	string	Version of the system - if relevant
display		0..1	string	Representation defined by the system
userSelected		0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
code	SΣ	1..1	code	Symbol in syntax defined by the system
subject	SΣ	1..1	Reference(Patient)	Who the procedure was performed on
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
encounter	SΣ	0..1	Reference(Encounter)	Kontakt (Aufenthaltsbezug)
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
Slices for performed[x]	SΣ	1..1	dateTime	Durchführungsdatum Slice: Unordered, Closed by type:$this
performed[x]:performedDateTime	SΣ	0..1	dateTime	When the procedure was performed
performed[x]:performedPeriod	SΣ	0..1	Period	Durchführungszeitraum
reasonReference	SΣ	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
bodySite	SΣ	0..*	CodeableConcept	Körperstelle Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.
Slices for extension				Content/Rules for all slices
extension:bodySite		0..1	Reference(BodyStructure)	Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:system
coding:snomed-ct	SΣ	0..1	Coding	SNOMED CT Code
system	SΣ	1..1	uri	Identity of the terminology system Required Pattern: http://snomed.info/sct
version	SΣ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
outcome	SΣ	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
coding	Σ	0..*	Coding	Lokaler Residualstatus
system	SΣ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
code	SΣ	0..1	code	Symbol in syntax defined by the system
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this Binding: Condition/Problem/DiagnosisCodes (example): Codes describing complications that resulted from a procedure.
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
coding	Σ	0..*	Coding	Komplikation der OP laut oBDS
system	Σ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
code	SΣ	1..1	code	Symbol in syntax defined by the system
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
coding	Σ	0..*	Coding	Komplikation der OP Sonstige ICD-10
system	Σ	1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
code	Σ	1..1	code	Symbol in syntax defined by the system
note	S	0..*	Annotation	Hinweis
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Procedure.extension:durchfuehrungsabsicht.​value[x]	Base	required	MII VS Prozedur Durchführungsabsicht [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.extension:Intention.​value[x]	Base	required	MII VS Onkologie Operation Intention	📦2027.0.0-ballot.1	This IG
Procedure.extension:Urgency.​value[x]	Base	required	MII VS Onkologie Operation Urgency	📦2027.0.0-ballot.1	This IG
Procedure.status	Base	required	EventStatus	📍4.0.1	FHIR Std.
Procedure.category	Base	example	Procedure Category Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.category.coding:sct	Base	preferred	MII VS Prozedur OPS Kategorien [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code	Base	example	Procedure Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.code.coding:ops	Base	required	MII VS Prozedur OPS	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code.coding:ops.​extension:Seitenlokalisation.​value[x]	Base	required	KBV_VS_SFHIR_ICD_SEITENLOKALISATION	⏿1.00	127.0.0.1
Procedure.code.coding:sct	Base	required	MII VS Prozedur Prozeduren [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.bodySite	Base	example	SNOMED CT Body Structures	📍4.0.1	FHIR Std.
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication	Base	example	Condition/Problem/Diagnosis Codes	📍4.0.1	FHIR Std.
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1

Constraints

Id	Grade	Path(s)	Description	Expression
dom-2	error	Procedure	If the resource is contained in another resource, it SHALL NOT contain nested Resources	contained.contained.empty()
dom-3	error	Procedure	If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource	contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty()
dom-4	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated	contained.meta.versionId.empty() and contained.meta.lastUpdated.empty()
dom-5	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a security label	contained.meta.security.empty()
dom-6	best practice	Procedure	A resource should have narrative for robust management	text.`div`.exists()
ele-1	error	**ALL** elements	All FHIR elements must have a @value or children	hasValue() or (children().count() > id.count())
ext-1	error	**ALL** extensions	Must have either extensions or value[x], not both	extension.exists() != value.exists()
ops-regex	warning	Procedure.code.coding:ops.code	In code sind nur gültige OPS-Codes ohne Zusätze erlaubt	matches('^[1|3|5|6|8|9]-[a-zA-Z0-9]{3}([.][a-zA-Z0-9]{1,2})?$')
proc-mii-1	error	Procedure	Falls die Prozedur per OPS kodiert wird, MUSS eine SNOMED-CT kodierte Category abgebildet werden	code.coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists() implies category.coding.where(system = 'http://snomed.info/sct').exists()
sct-ops-1	error	Procedure.code	Eine Prozedur MUSS mit OPS oder SNOMED-CT kodiert werden.	coding.where(system = 'http://snomed.info/sct').exists() or coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists()

Differential View

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure		0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient
extension		1..*	Extension	Extension
Slices for extension				Content/Rules for all slices
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
value[x]
coding
code		1..1	code	Symbol in syntax defined by the system
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
value[x]
coding
code		1..1	code	Symbol in syntax defined by the system
Slices for basedOn	S	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	S	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	S	0..*	Reference(Observation | Procedure)	Part of referenced event
code
Slices for coding				Content/Rules for all slices
coding:ops		0..1	CodingOPS	OPS-Kode der Operation
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation		0..1	ExtensionSeitenlokalisation	Seitenlokalisation (OPS-Seitenzusatz R/L/B)
version		1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code		1..1	code	Der OPS-Code
subject		1..1	Reference(Patient)	Who the procedure was performed on
performed[x]		1..1	dateTime	Durchführungsdatum
Slices for performed[x]				Content/Rules for all slices
performed[x]:performedDateTime		0..1	dateTime	When the procedure was performed
reasonReference	S	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
outcome	S	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
coding		0..*	Coding	Lokaler Residualstatus
system	S	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
code	S	0..1	code	Symbol in syntax defined by the system
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
coding		0..*	Coding	Komplikation der OP laut oBDS
system		0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
code	S	1..1	code	Symbol in syntax defined by the system
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
coding		0..*	Coding	Komplikation der OP Sonstige ICD-10
system		1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
code		1..1	code	Symbol in syntax defined by the system
Documentation for this format

Terminology Bindings (Differential)

Path	Status	Usage	ValueSet	Version	Source
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1

Snapshot ViewView

Name	Flags	Card.	Type	Description & Constraints    Filter: Bindings Constraints Obligations
Procedure	C	0..*	MII_PR_Prozedur_Procedure	An action that is being or was performed on a patient Constraints: proc-mii-1
id	SΣ	0..1	id	Logical id of this artifact
meta	SΣ	0..1	Meta	Metadata about the resource
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
versionId	Σ	0..1	id	Version specific identifier
lastUpdated	Σ	0..1	instant	When the resource version last changed
source	SΣ	0..1	uri	Identifies where the resource comes from
profile	SΣ	0..*	canonical(StructureDefinition)	Profiles this resource claims to conform to
security	Σ	0..*	Coding	Security Labels applied to this resource Binding: All Security Labels (extensible): Security Labels from the Healthcare Privacy and Security Classification System.
tag	Σ	0..*	Coding	Tags applied to this resource Binding: CommonTags (example): Codes that represent various types of tags, commonly workflow-related; e.g. "Needs review by Dr. Jones".
implicitRules	?!Σ	0..1	uri	A set of rules under which this content was created
language		0..1	code	Language of the resource content Binding: CommonLanguages (preferred): A human language. Additional Bindings Purpose AllLanguages Max Binding
text		0..1	Narrative	Text summary of the resource, for human interpretation This profile does not constrain the narrative in regard to content, language, or traceability to data elements
contained		0..*	Resource	Contained, inline Resources
Slices for extension	S	1..*	Extension	Extension Slice: Unordered, Open by value:url
extension:Dokumentationsdatum	S	0..1	(Complex)	Dokumentationsdatum URL: http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/ProzedurDokumentationsdatum"
value[x]	S	1..1	dateTime	Value of extension
extension:durchfuehrungsabsicht	S	0..1	(Complex)	Durchführungsabsicht URL: https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url	S	1..1	uri	"https://www.medizininformatik-initiative.de/fhir/core/modul-prozedur/StructureDefinition/Durchfuehrungsabsicht"
value[x]	S	1..1	Coding	Value of extension Binding: MII VS Prozedur Durchführungsabsicht [SNOMED CT] (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
extension:Intention	S	1..1	(Complex)	Intention der OP URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Intention (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Code defined by a terminology system
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Fixed Value: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-intention
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	SΣ	0..1	string	Plain text representation of the concept
extension:Urgency	S	0..1	(Complex)	Art des Eingriffs URL: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Extension Slice: Unordered, Open by value:url
url		1..1	uri	"https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency"
value[x]		1..1	CodeableConcept	Value of extension Binding: MII VS Onkologie Operation Urgency (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Code defined by a terminology system
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Fixed Value: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-urgency
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	SΣ	0..1	string	Plain text representation of the concept
modifierExtension	?!	0..*	Extension	Extensions that cannot be ignored
identifier	Σ	0..*	Identifier	External Identifiers for this procedure
instantiatesCanonical	Σ	0..*	canonical(PlanDefinition | ActivityDefinition | Measure | OperationDefinition | Questionnaire)	Instantiates FHIR protocol or definition
instantiatesUri	Σ	0..*	uri	Instantiates external protocol or definition
Slices for basedOn	SΣ	0..*	Reference(CarePlan)	A request for this procedure Slice: Unordered, Open by type:$this.resolve()
basedOn:tumorkonferenz	SΣ	0..1	Reference(MII PR Onkologie Tumorkonferenz)	A request for this procedure
partOf	SΣ	0..*	Reference(Observation | Procedure)	Part of referenced event
status	?!SΣ	1..1	code	Status Binding: EventStatus (required): A code specifying the state of the procedure.
statusReason	Σ	0..1	CodeableConcept	Reason for current status Binding: ProcedureNotPerformedReason(SNOMED-CT) (example): A code that identifies the reason a procedure was not performed.
category	SΣ	0..1	CodeableConcept	Kategorie Binding: ProcedureCategoryCodes(SNOMEDCT) (example): A code that classifies a procedure for searching, sorting and display purposes.
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur OPS Kategorien [SNOMED CT] (preferred) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
code	SΣC	1..1	CodeableConcept	Code Binding: ProcedureCodes(SNOMEDCT) (example): A code to identify a specific procedure . Constraints: sct-ops-1
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for coding	SΣ	1..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:$this
coding:ops	SΣ	0..1	CodingOPS	OPS-Kode der Operation Binding: MII VS Prozedur OPS (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
Slices for extension				Content/Rules for all slices
extension:Seitenlokalisation	S	0..1	(Complex)	Seitenlokalisation (OPS-Seitenzusatz R/L/B) URL: http://fhir.de/StructureDefinition/seitenlokalisation
id		0..1	string	Unique id for inter-element referencing
extension		0..0		Additional content defined by implementations Slice: Unordered, Open by value:url
url	S	1..1	uri	"http://fhir.de/StructureDefinition/seitenlokalisation"
value[x]	S	1..1	Coding	Value of extension Binding: KBV_VS_SFHIR_ICD_SEITENLOKALISATION (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
system	SΣ	1..1	uri	Canonische CodeSystem URL für OPS Fixed Value: http://fhir.de/CodeSystem/bfarm/ops
version	SΣ	1..1	string	Die Jahresversion des OPS Kataloges. Angegeben wird immer die vierstellige Jahreszahl (z.B. "2017")
code	SΣC	1..1	code	Der OPS-Code Constraints: ops-regex Example Einfacher OPS-Code: 5-470
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
coding:sct	SΣ	0..1	Coding	SNOMED CT Code Binding: MII VS Prozedur Prozeduren [SNOMED CT] (required) Required Pattern: At least the following
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Fixed Value: http://snomed.info/sct
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
subject	SΣ	1..1	Reference(Patient)	Who the procedure was performed on
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
type	Σ	0..1	uri	Type the reference refers to (e.g. "Patient") Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).
identifier	Σ	0..1	Identifier	Logical reference, when literal reference is not known
display	Σ	0..1	string	Text alternative for the resource
encounter	SΣ	0..1	Reference(Encounter)	Kontakt (Aufenthaltsbezug)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
reference	SΣC	0..1	string	Literal reference, Relative, internal or absolute URL
type	Σ	0..1	uri	Type the reference refers to (e.g. "Patient") Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).
identifier	Σ	0..1	Identifier	Logical reference, when literal reference is not known
display	Σ	0..1	string	Text alternative for the resource
Slices for performed[x]	SΣ	1..1	dateTime	Durchführungsdatum Slice: Unordered, Closed by type:$this
performed[x]:performedDateTime	SΣ	0..1	dateTime	When the procedure was performed
performed[x]:performedPeriod	SΣ	0..1	Period	Durchführungszeitraum
recorder	Σ	0..1	Reference(Patient | RelatedPerson | Practitioner | PractitionerRole)	Who recorded the procedure
asserter	Σ	0..1	Reference(Patient | RelatedPerson | Practitioner | PractitionerRole)	Person who asserts this procedure
performer	Σ	0..*	BackboneElement	The people who performed the procedure
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
modifierExtension	?!Σ	0..*	Extension	Extensions that cannot be ignored even if unrecognized
function	Σ	0..1	CodeableConcept	Type of performance Binding: ProcedurePerformerRoleCodes (example): A code that identifies the role of a performer of the procedure.
actor	Σ	1..1	Reference(Practitioner | PractitionerRole | Organization | Patient | RelatedPerson | Device)	The reference to the practitioner
onBehalfOf		0..1	Reference(Organization)	Organization the device or practitioner was acting for
location	Σ	0..1	Reference(Location)	Where the procedure happened
reasonCode	Σ	0..*	CodeableConcept	Coded reason procedure performed Binding: ProcedureReasonCodes (example): A code that identifies the reason a procedure is required.
reasonReference	SΣ	0..*	Reference(MII PR Onkologie Diagnose Primärtumor | Condition)	The justification that the procedure was performed
bodySite	SΣ	0..*	CodeableConcept	Körperstelle Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.
id		0..1	string	Unique id for inter-element referencing
Slices for extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
extension:bodySite		0..1	Reference(BodyStructure)	Target anatomic location or structure URL: http://hl7.org/fhir/StructureDefinition/bodySite
Slices for coding	SΣ	0..*	Coding	Code defined by a terminology system Slice: Unordered, Open by pattern:system
coding:snomed-ct	SΣ	0..1	Coding	SNOMED CT Code
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	1..1	uri	Identity of the terminology system Required Pattern: http://snomed.info/sct
version	SΣ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
outcome	SΣ	0..1	CodeableConcept	The result of procedure Binding: MII VS Onkologie Beurteilung des lokalen Residualstatus (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Lokaler Residualstatus
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	SΣ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-residualstatus
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	0..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
report		0..*	Reference(DiagnosticReport | DocumentReference | Composition)	Any report resulting from the procedure
Slices for complication	S	0..*	CodeableConcept	Complication following the procedure Slice: Unordered, Open by pattern:$this Binding: Condition/Problem/DiagnosisCodes (example): Codes describing complications that resulted from a procedure.
complication:compl_obds	S	0..*	CodeableConcept	Complication following the procedure Binding: MII VS Onkologie Operation Komplikationen (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Komplikation der OP laut oBDS
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	0..1	uri	Identity of the terminology system Required Pattern: https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/CodeSystem/mii-cs-onko-operation-komplikation
version	Σ	0..1	string	Version of the system - if relevant
code	SΣ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
complication:compl_icd10	S	0..*	CodeableConcept	Complication following the procedure Binding: Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme (required)
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
coding	Σ	0..*	Coding	Komplikation der OP Sonstige ICD-10
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations Slice: Unordered, Open by value:url
system	Σ	1..1	uri	Identity of the terminology system Required Pattern: http://fhir.de/CodeSystem/bfarm/icd-10-gm
version	Σ	0..1	string	Version of the system - if relevant
code	Σ	1..1	code	Symbol in syntax defined by the system
display	Σ	0..1	string	Representation defined by the system
userSelected	Σ	0..1	boolean	If this coding was chosen directly by the user
text	Σ	0..1	string	Plain text representation of the concept
complicationDetail		0..*	Reference(Condition)	A condition that is a result of the procedure
followUp		0..*	CodeableConcept	Instructions for follow up Binding: ProcedureFollowUpCodes(SNOMEDCT) (example): Specific follow up required for a procedure e.g. removal of sutures.
note	S	0..*	Annotation	Hinweis
focalDevice		0..*	BackboneElement	Manipulated, implanted, or removed device
id		0..1	string	Unique id for inter-element referencing
extension		0..*	Extension	Additional content defined by implementations
modifierExtension	?!Σ	0..*	Extension	Extensions that cannot be ignored even if unrecognized
action		0..1	CodeableConcept	Kind of change to device Binding: ProcedureDeviceActionCodes (preferred): A kind of change that happened to the device during the procedure.
manipulated		1..1	Reference(Device)	Device that was changed
usedReference		0..*	Reference(Device | Medication | Substance)	Items used during procedure
usedCode		0..*	CodeableConcept	Coded items used during the procedure Binding: FHIRDeviceTypes (example): Codes describing items used during a procedure.
Documentation for this format

Terminology Bindings

Path	Status	Usage	ValueSet	Version	Source
Procedure.meta.security	Base	extensible	SecurityLabels	📍4.0.1	FHIR Std.
Procedure.meta.tag	Base	example	Common Tags	📍4.0.1	FHIR Std.
Procedure.language	Base	preferred	Common Languages	📍4.0.1	FHIR Std.
Procedure.extension:durchfuehrungsabsicht.​value[x]	Base	required	MII VS Prozedur Durchführungsabsicht [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.extension:Intention.​value[x]	Base	required	MII VS Onkologie Operation Intention	📦2027.0.0-ballot.1	This IG
Procedure.extension:Urgency.​value[x]	Base	required	MII VS Onkologie Operation Urgency	📦2027.0.0-ballot.1	This IG
Procedure.status	Base	required	EventStatus	📍4.0.1	FHIR Std.
Procedure.statusReason	Base	example	Procedure Not Performed Reason (SNOMED-CT)	📍4.0.1	FHIR Std.
Procedure.category	Base	example	Procedure Category Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.category.coding:sct	Base	preferred	MII VS Prozedur OPS Kategorien [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code	Base	example	Procedure Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.code.coding:ops	Base	required	MII VS Prozedur OPS	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.code.coding:ops.​extension:Seitenlokalisation.​value[x]	Base	required	KBV_VS_SFHIR_ICD_SEITENLOKALISATION	⏿1.00	127.0.0.1
Procedure.code.coding:sct	Base	required	MII VS Prozedur Prozeduren [SNOMED CT]	📦2027.0.0-ballot	MII Implementation Guide Core Dataset Base v2027.0
Procedure.subject.type	Base	extensible	ResourceType	📍4.0.1	FHIR Std.
Procedure.encounter.​type	Base	extensible	ResourceType	📍4.0.1	FHIR Std.
Procedure.performer.​function	Base	example	Procedure Performer Role Codes	📍4.0.1	FHIR Std.
Procedure.reasonCode	Base	example	Procedure Reason Codes	📍4.0.1	FHIR Std.
Procedure.bodySite	Base	example	SNOMED CT Body Structures	📍4.0.1	FHIR Std.
Procedure.outcome	Base	required	MII VS Onkologie Beurteilung des lokalen Residualstatus	📦2027.0.0-ballot.1	This IG
Procedure.complication	Base	example	Condition/Problem/Diagnosis Codes	📍4.0.1	FHIR Std.
Procedure.complication:compl_obds	Base	required	MII VS Onkologie Operation Komplikationen	📦2027.0.0-ballot.1	This IG
Procedure.complication:compl_icd10	Base	required	Internationale statistische Klassifikation der Krankheiten und verwandter Gesundheitsprobleme	⏿2026	127.0.0.1
Procedure.followUp	Base	example	Procedure Follow up Codes (SNOMED CT)	📍4.0.1	FHIR Std.
Procedure.focalDevice.​action	Base	preferred	Procedure Device Action Codes	📍4.0.1	FHIR Std.
Procedure.usedCode	Base	example	FHIR Device Types	📍4.0.1	FHIR Std.

Constraints

Id	Grade	Path(s)	Description	Expression
dom-2	error	Procedure	If the resource is contained in another resource, it SHALL NOT contain nested Resources	contained.contained.empty()
dom-3	error	Procedure	If the resource is contained in another resource, it SHALL be referred to from elsewhere in the resource or SHALL refer to the containing resource	contained.where((('#'+id in (%resource.descendants().reference | %resource.descendants().as(canonical) | %resource.descendants().as(uri) | %resource.descendants().as(url))) or descendants().where(reference = '#').exists() or descendants().where(as(canonical) = '#').exists() or descendants().where(as(canonical) = '#').exists()).not()).trace('unmatched', id).empty()
dom-4	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a meta.versionId or a meta.lastUpdated	contained.meta.versionId.empty() and contained.meta.lastUpdated.empty()
dom-5	error	Procedure	If a resource is contained in another resource, it SHALL NOT have a security label	contained.meta.security.empty()
dom-6	best practice	Procedure	A resource should have narrative for robust management	text.`div`.exists()
ele-1	error	**ALL** elements	All FHIR elements must have a @value or children	hasValue() or (children().count() > id.count())
ext-1	error	**ALL** extensions	Must have either extensions or value[x], not both	extension.exists() != value.exists()
ops-regex	warning	Procedure.code.coding:ops.code	In code sind nur gültige OPS-Codes ohne Zusätze erlaubt	matches('^[1|3|5|6|8|9]-[a-zA-Z0-9]{3}([.][a-zA-Z0-9]{1,2})?$')
proc-mii-1	error	Procedure	Falls die Prozedur per OPS kodiert wird, MUSS eine SNOMED-CT kodierte Category abgebildet werden	code.coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists() implies category.coding.where(system = 'http://snomed.info/sct').exists()
sct-ops-1	error	Procedure.code	Eine Prozedur MUSS mit OPS oder SNOMED-CT kodiert werden.	coding.where(system = 'http://snomed.info/sct').exists() or coding.where(system = 'http://fhir.de/CodeSystem/bfarm/ops').exists()

Summary

Mandatory: 2 elements(3 nested mandatory elements)
Must-Support: 13 elements

Structures

This structure refers to these other structures:

• MII PR Onkologie Tumorkonferenz (https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-pr-onko-tumorkonferenz)
• MII PR Onkologie Diagnose Primärtumor (https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-pr-onko-diagnose-primaertumor)

Extensions

This structure refers to these extensions:

• https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-intention
• https://www.medizininformatik-initiative.de/fhir/ext/modul-onko/StructureDefinition/mii-ex-onko-operation-urgency

Slices

This structure defines the following Slices:

• The element 1 is sliced based on the value of Procedure.basedOn
• The element 1 is sliced based on the value of Procedure.complication
